R1155A (1941)
Menu | |||
This set:- R1155A (circa 1941) Ser No: 5829 Manufacturer: E.K. Cole Ltd |
|||

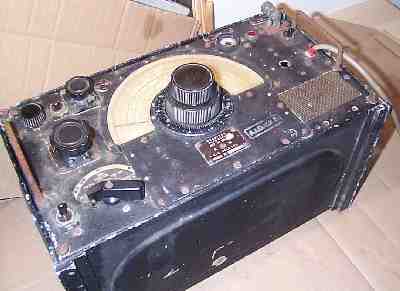

As purchased |

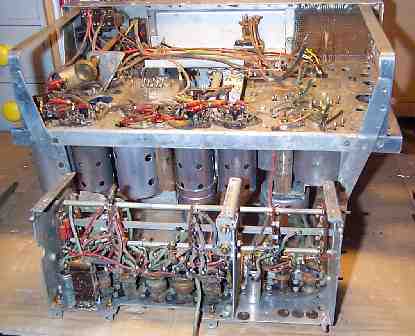

Coil box removed (an unbelievably challenging task!) |

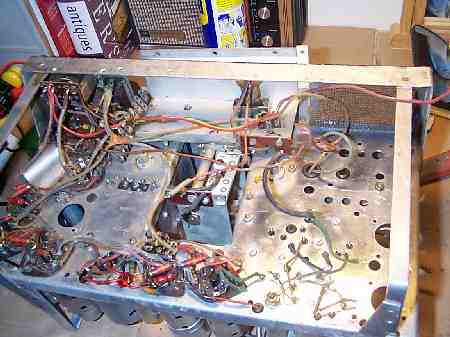

Main chassis underside |
|

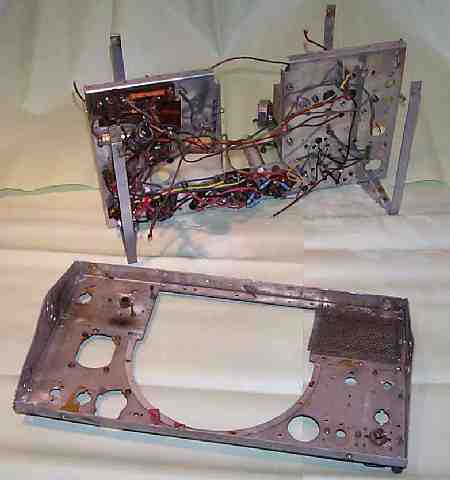

Front panel removal (rivets drilled through) |

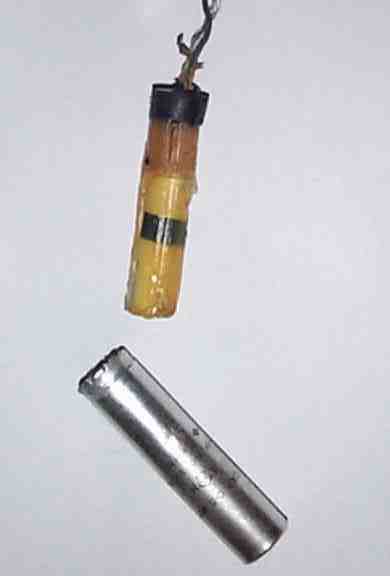

Innards of one of the many original wax-paper capacitors used in this type of set |

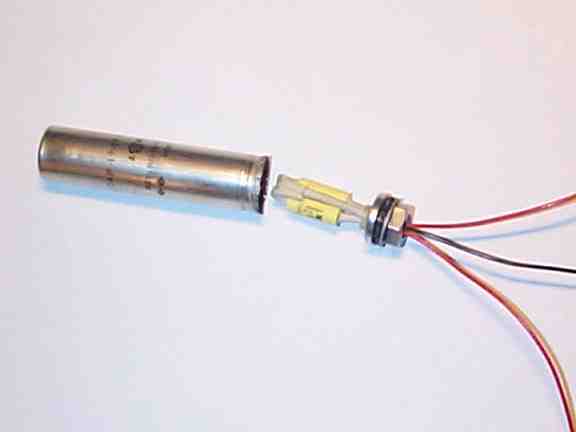

Modern 0.1uF replacement inserts |
|

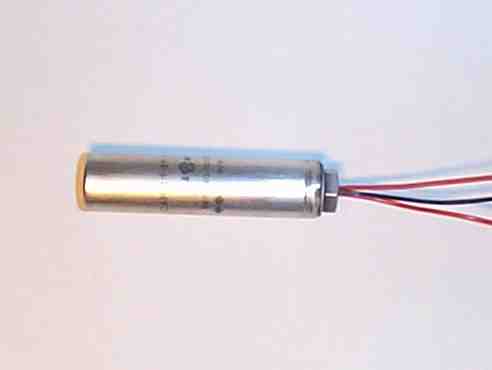

'Repaired' product! |
|||

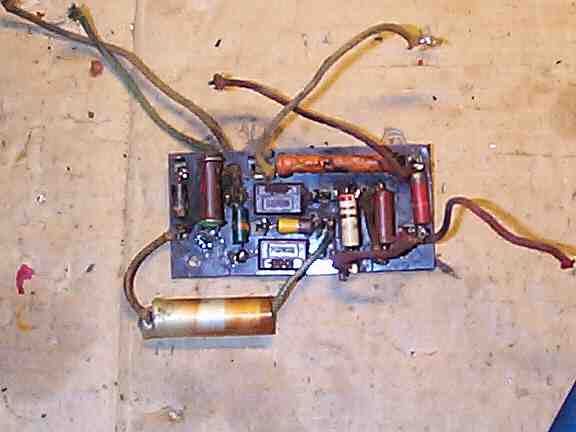

Underside component panel containing original components (normally very inaccesible) |

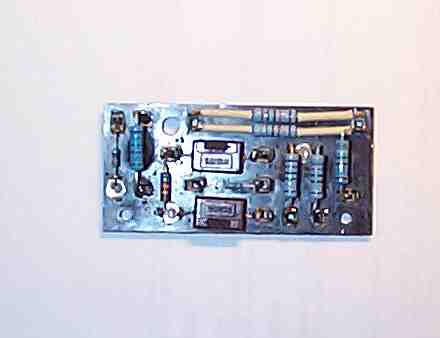

Underside panel with modern components where justified |
End result, in full working order! |
Last updated 27th February 2005
